Electrical Circuits and Range Hood Planning for an Older Kitchen

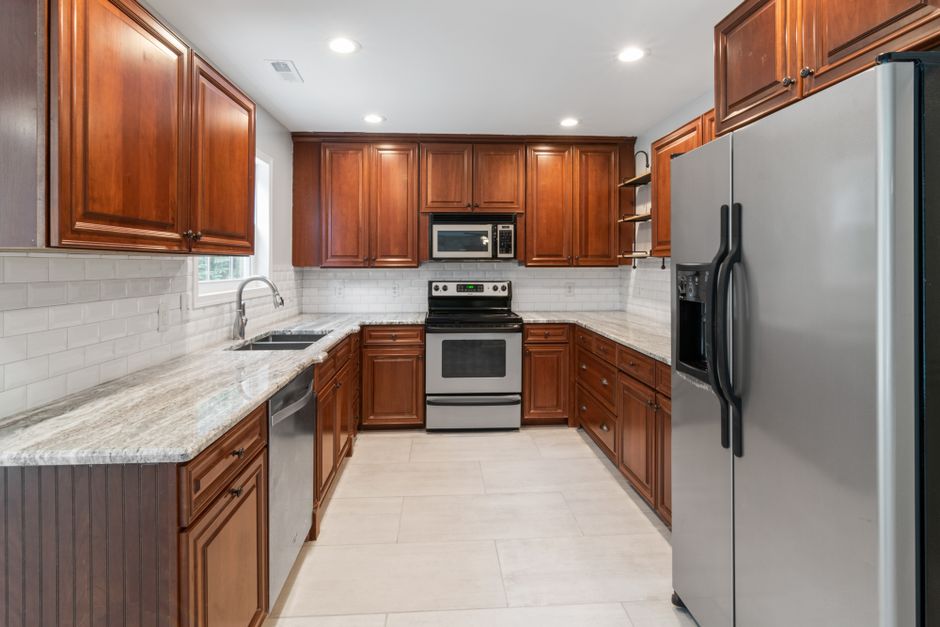

Spacious kitchen featuring stainless steel appliances, wooden cabinets, and granite countertops.

Six open breaker slots, four appliance circuits and one duct path make up the arithmetic of a kitchen in Palm Springs, CA, and the intervals kitchen remodeling palm springs lach today uses for planning start from those counts rather than from the showroom floor. A range hood is only as good as the diameter and length of the duct behind it.

Count the circuits

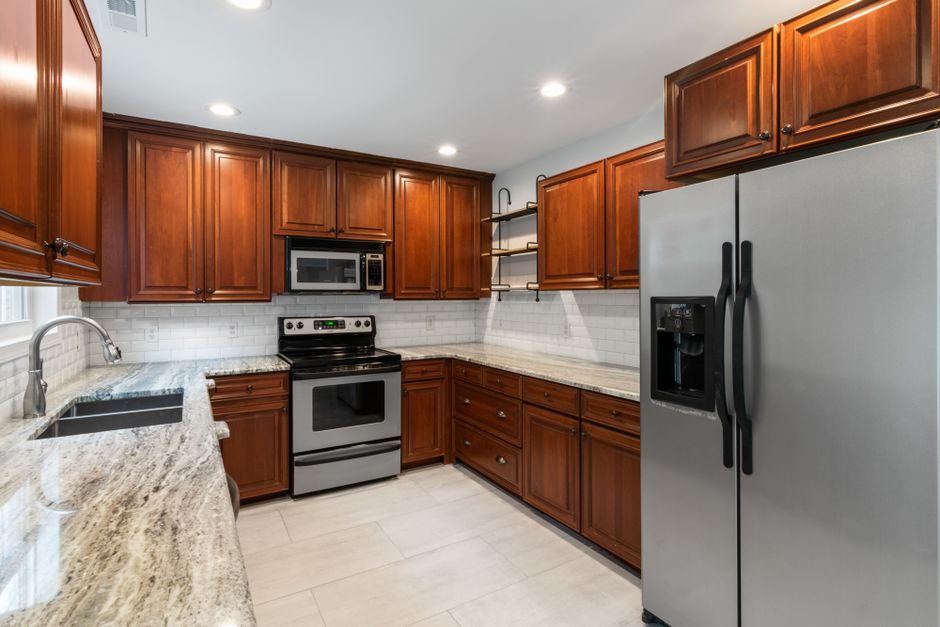

Elegant kitchen interior featuring wooden cabinetry and stainless steel appliances.

A current kitchen needs two small appliance circuits for the counters, one for the refrigerator, one for the dishwasher and disposal, one for the microwave, and a dedicated line for an electric range or a gas igniter. Many older houses in the Coachella Valley have two or three of these at most, all shared.

Check the panel

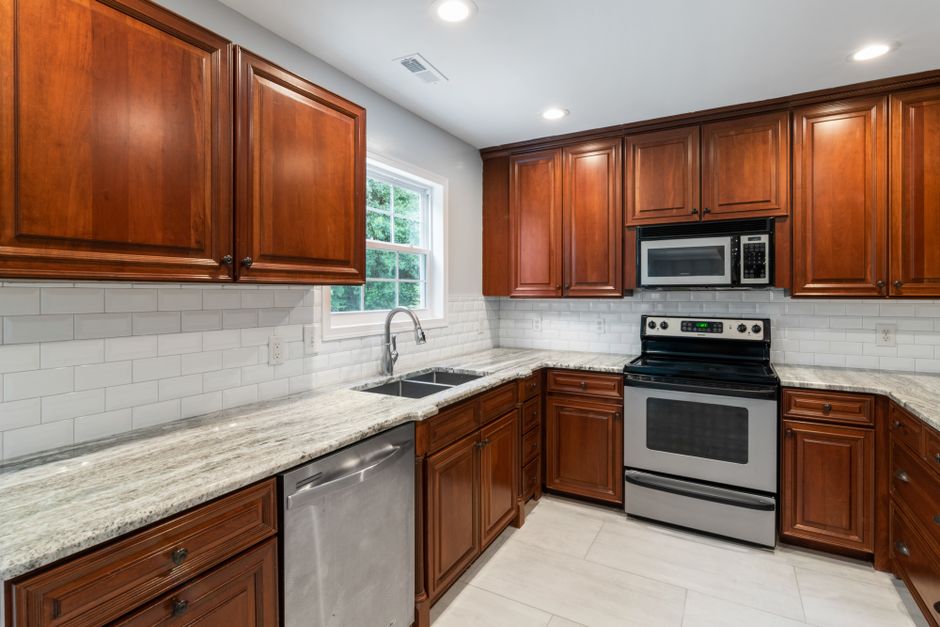

Spacious kitchen with wooden cabinets, modern appliances, and granite countertops.

Open the panel and count empty slots and read the main breaker rating. A one hundred amp service with a new induction range often runs out of room. Upgrading to two hundred amps is a separate permit and a utility visit, and it should be scheduled before the cabinets are ordered.

Plan the hood duct

A hood that vents outside needs a straight, short path. On a slab house with a flat roof, the duct usually goes up through the ceiling cavity and out a wall or the roof. Each elbow cuts airflow, and a six inch duct choked down from eight will be loud and weak. A recirculating hood is a fallback, not an equal.

Ground fault and arc fault protection

Current code in Riverside County asks for ground fault protection on counter outlets and arc fault protection on most kitchen branch circuits. Old wiring gets pulled into the new rules once the walls are opened.

Lighting circuits

Under cabinet and recessed lighting should have their own circuit and switch. Heat in the attic above a flat roof is hard on cheap drivers, so fixtures rated for insulation contact and for high ambient temperature are the safer pick through the Colorado Desert summer peaks.

Makeup air

A strong hood pulls air out of the house, and a tight remodeled kitchen needs a path for replacement air. Past a certain fan rating, code asks for a makeup air damper tied to the hood. Planning that opening early keeps it from landing in the middle of a finished wall, and it avoids a hood that whistles at full speed.
